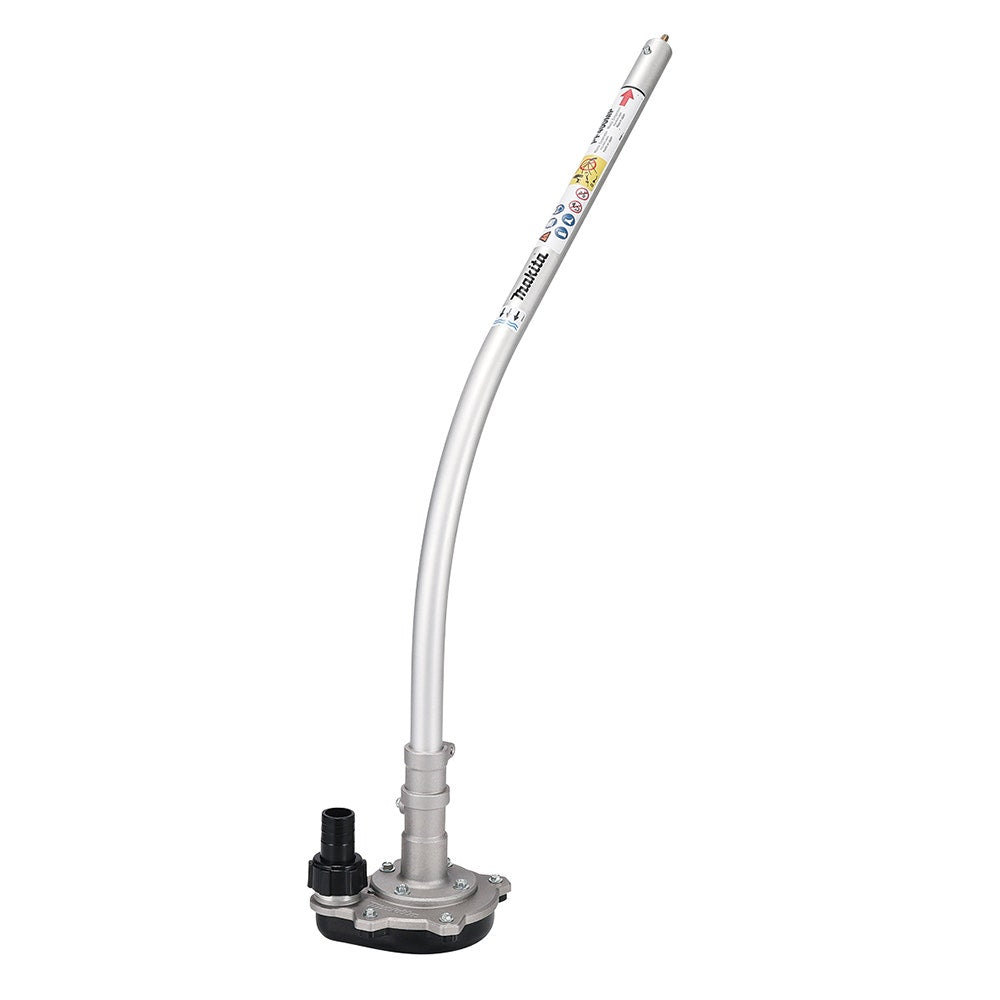

Powered by the UX01G, DUX60 and DUX18, the Multi-function Powerhead Pump Attachment (PF400MP) is designed to quickly transfer water simply by connecting a 25mm garden hose to the outlet and submerging the head in at least 20mm of water. When using the UX01G the PF400MPvcan transfer up to 135L/min with a max suction height of 13m.
135L/min Max flow rate with UX01G
Max suction height of 13m with UX01G
Residual water level of only 10mm
Powered by UX01G, DUX60 or DUX18
Lever lock system allows for quick installation and replacement
Specifications
No Load Speed (rpm)
UX01G 0 – 5,600 / 8,100 / 9,500
DUX60 0 – 5,600 / 8,100 / 9,100
DUX18 0 – 6,700 / 7,700
Max Head Height (m)
UX01G 0 – 6 / 10 / 13
DUX60 0 – 6 / 10 / 11.5
DUX18 0 – 7 / 8
Max Flow (L/min)
UX01G 0 - 80 / 115 / 135
DUX60 0 - 80 / 115 / 125
DUX18 0 – 90 / 100
Lowest Water Level: 20mm
Residual Water Level: 10mm
