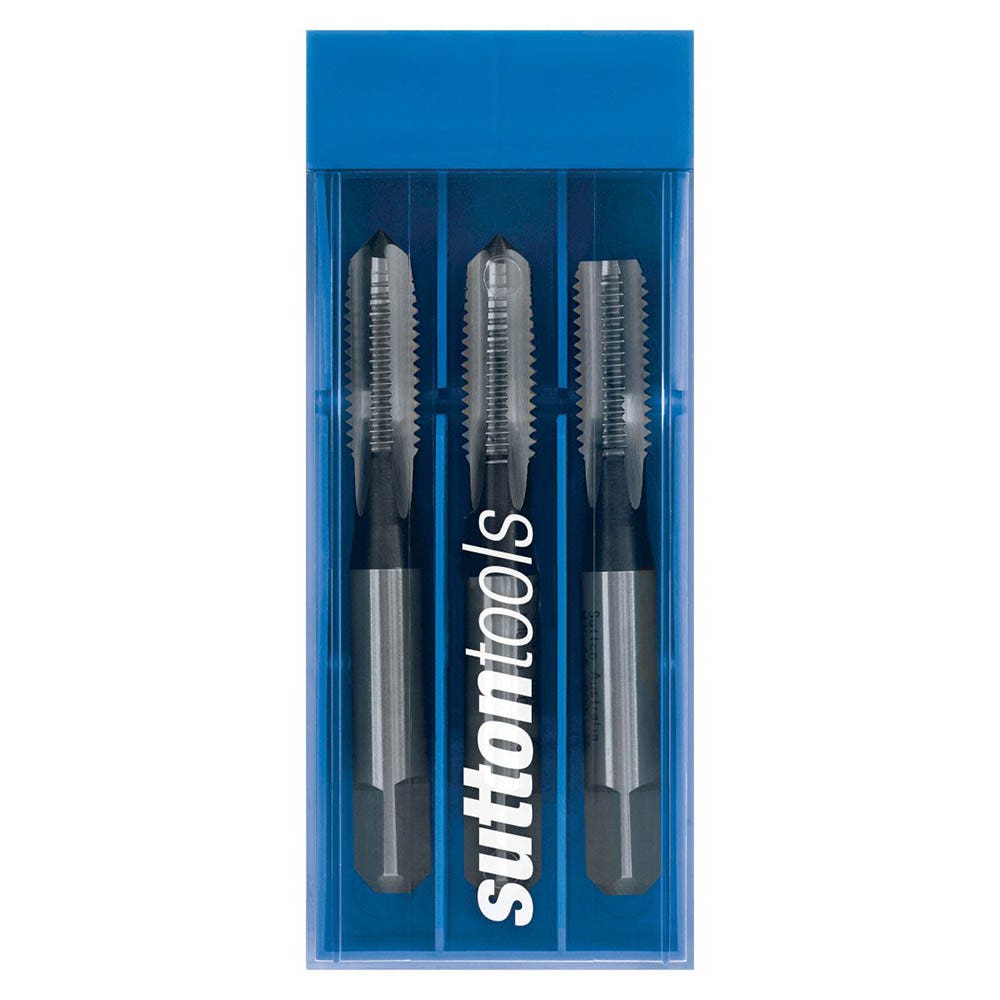

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: BA
Nut Tolerance: Z3 Medium
Lead: Set
Limit: Z3
Length l1 (mm): 62
Length l2 (mm): 17
Length l3 (mm): 23
Diameter d2 (mm): 5.6
sq: 4.5
Length l4 (mm): 7
z: 3
