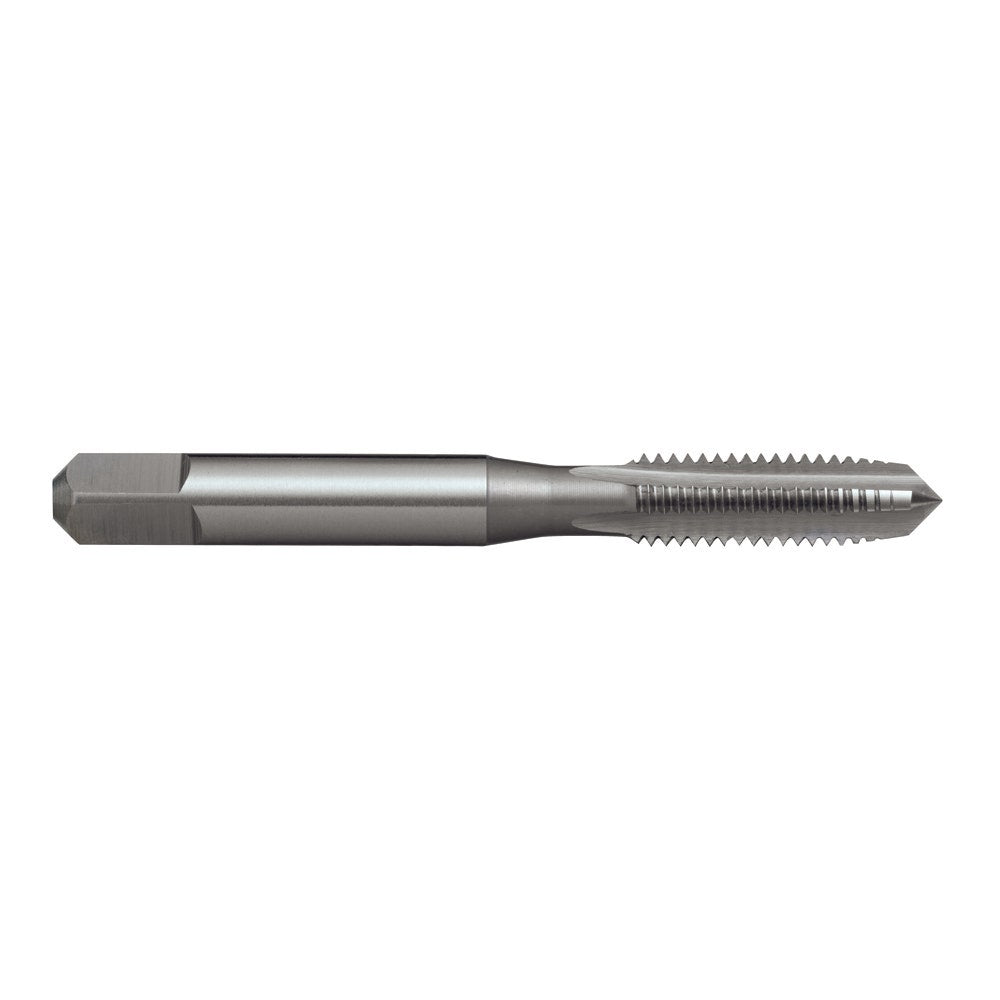

General-purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Finish: Brt
Shank Form: A
Type: Straight Flute
Thread Form: MF
Lead: Intermediate
Material: HSS
Max Cut Depth: 1xD
x: als
Standard: ISO529
Nut Tolerance: ISO 2 / 6H
Size:
d1: MF10
11: 80
l2: 24
l3: 3
d2: 10
sq: 8
l4: 11
z: 4
Drill Ø: 9
Pitch: 1
