General-purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Finish: Brt
Shank Form: A

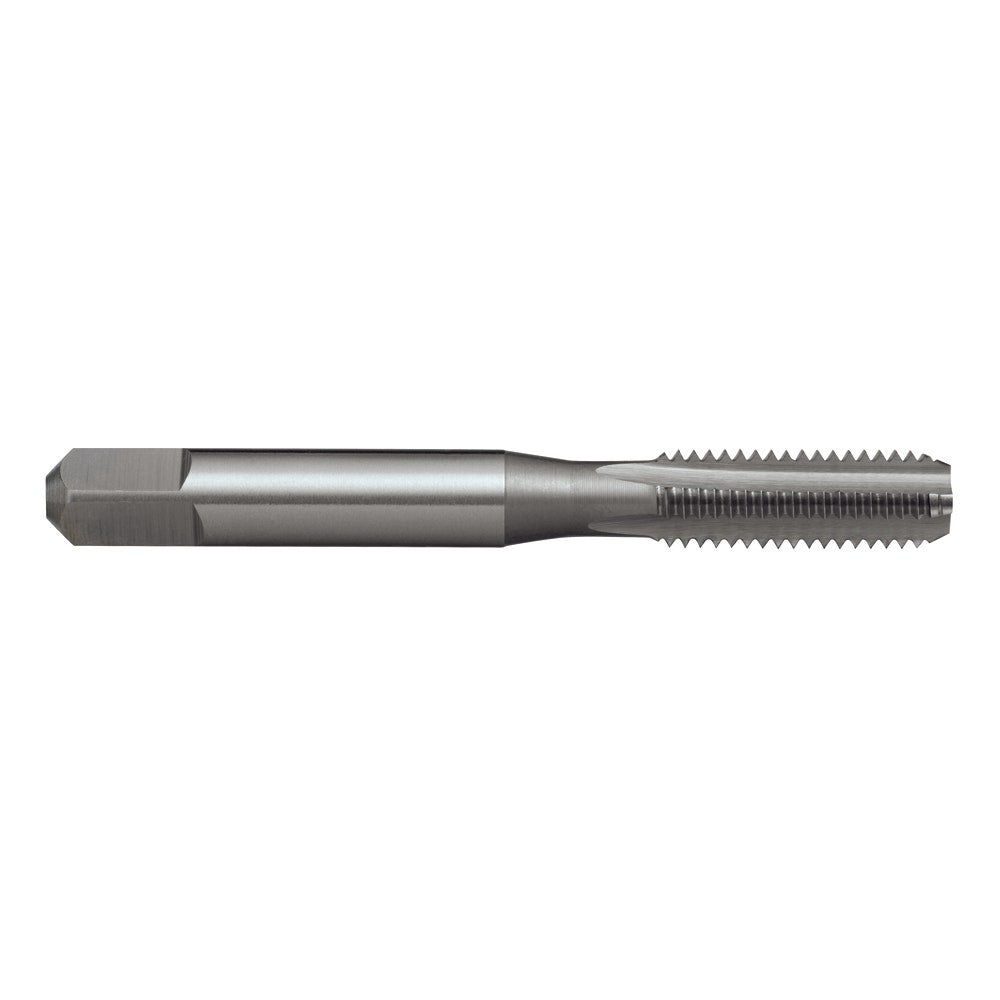

Type: Straight Flute
Thread Form: MF
Lead: Bottoming
Material: HSS
Max Cut Depth: 1xD
x: als
Standard: ISO529
Nut Tolerance: ISO 2 / 6H
Size:
d1: M16
11: 102
l2: 32
d2: 12.5
sq: 10
l4: 13
z: 4
Drill Ø: 14
Pitch: 2
