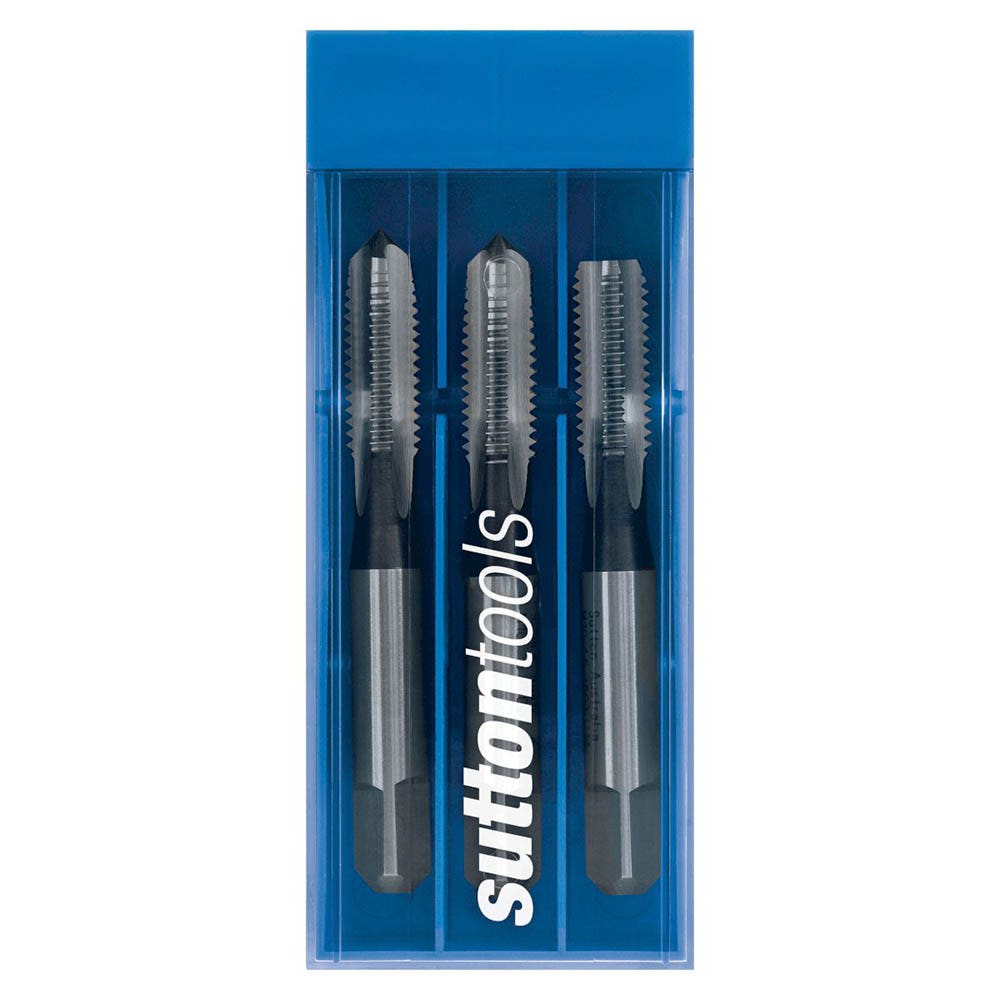

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: MF
Nut Tolerance: 2B
Lead: Set
Limit: 2B
Length l1 (mm): 102
Length l2 (mm): 32
Diameter d2 (mm):12.5
sq: 10
Length l4 (mm): 13
Pitch: 1.50
